Insulated pipe supports offer an immediate thermal break and eliminate “radiator fin” heat loss or gain, depending on the service temperature of the system. Pre-insulated supports function to keep heat in or out of the pipe as desired depending on the service temperature of the pipe.

Types

Sliding Pipe support system; Guide pipe support system (including guide support for vertical pipe); Limit pipe support system; Fixing pipe support system Bearer; Supporting bracket system.

Compositions

A complete insulated pipe support system is composed of insulated pipe supports and cold insulation materials. The cold insulation material is the most important part of the insulated pipe support system, which is high density polyisocyanurate (HDPIR).

In addition to the main cold insulation materials, the insulated pipe support system can also be equipped with the following auxiliary materials according to the requirements: damp proof layer, metal protective layer, rubber plate, metal pipe clamp, bolt and nut, butterfly spring, cold insulation washer, polytetrafluoroethylene sliding pair, steam insulation resistance, etc., in order to meet the design needs and ensure the safe and reliable use of the pipe support system.

Application

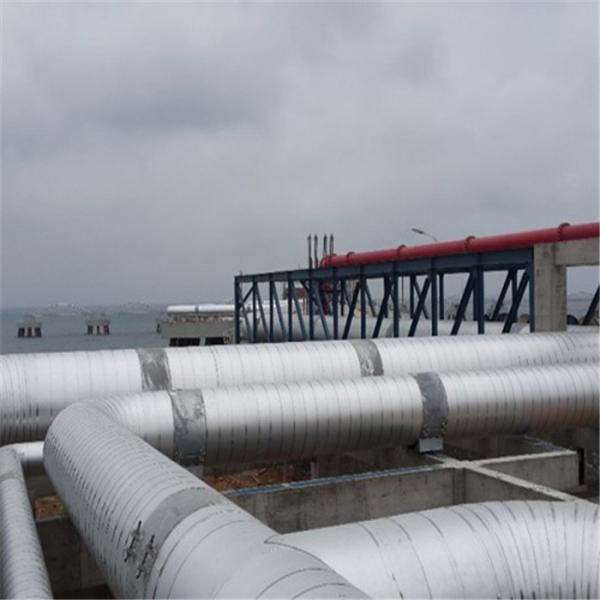

It is mainly used for bearing and heat insulation of pipes and equipment in petrochemical plant, liquefied gas plant, refrigeration warehouse and central air conditioning system.

Packing and Storage

All parts will be fitted together in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.

HDPIR

HDPIR is a kind of foaming polymer, with the features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, flame retardant, etc. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provide benefits of low density, low thermal conductivity, low water absorption. The performance is better than timber.

Production Flow

Founded in 2012, the Kaff Rees’ factory is a fast growing manufacturer specialized in providing insulation solutions andinsulationsystems. After persistent efforts the Kaff Rees’ factory has been the national leading specialist in insulation systems. In order to expand the international business, Kaff Rees was founded that committed to provide the products and services of industrial insulation, insulation of civil building , anti-corrosion insulation engineering to the world.

With the factory root in China, Kaff Rees’ efficient design and production makes it possible to produce insulation materials（such as foam glass,Poly Isocyanurate Foam PIR, etc.）, pipe supports close to serial production, not only the standardized products but also the differentiated customization products. Many products are therefore available with the short delivery times possible directly from the Kaff Rees’ factory.

Kaff Rees can provide the professional insulation solutions from -196℃ to +400℃ that engaging in the R&D, production and distribution of insulation materials and pipe supports system.A complete product portfolio covers all support situations, operational loads, temperatures and travel ranges normally experienced in industrial insulationsystems in the construction fields of petrochemical, coal chemical, LNG, low temperature, cold air, subway, underground moisture, cold, heat insulation, etc. Kaff Rees’ systematic design and product solutions provide the corresponding basis.

To meet unusual customer requirements, the Kaff Rees team will arrange specialists for continuous tracking who advise our customers and work together with them to develop solutions.
